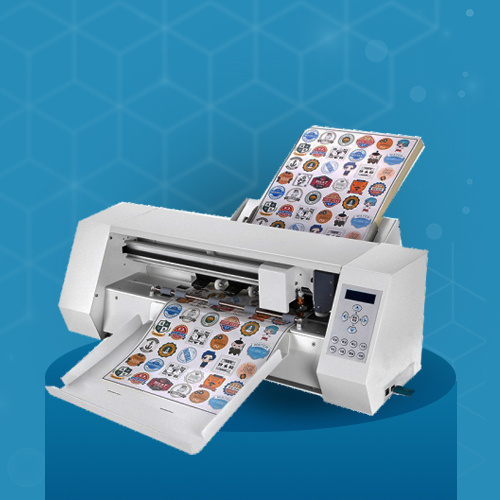

| Model No | C13 PRO |
|---|---|
| Max Media Width | 330 mm |
| Max Cutting Width | 320 mm |
| Blank Size | 5mm edge margin |
| Mainboard | High Speed Arithmetic Microprocessor 4MB cache |
| Interface | USB./U.Disk. |
| Control Panel | Thin film switch (Life 1 million times) |
| Driver | Digital DC, step motor, Micro step driver |
| Display | 2*16 high resolution LCD |
| Drawing Instruction | DMPL/HP-GL |
| Max Cutting Speed | 900 |
| Max Cutting Thickness | 1mm |
| Pressure | 50-800g (160 Grade digital adjustable) |
| Mechanical Precision | 0.025mm |
| Repeatable Precision | <+0.1mm |
| Power Supply | AC90–220V/50Hz |
| Positioning Model | Bounded system, random original point setting |
| Working Model | Roller, single, multiple media auto feeding |
| Operational Environment | +5~+35°, relative humidity 30%~70% |
| Machine Weight | 30 kg |
| Machine Dimension | 765x570x365 mm |
Whether you're a local manufacturer or business looking for safe packaging machinery, Marvel Print Pack Solution is here to help. we promise high-quality machines and a long-term service guarantee.
